M size online automatic 2D AOI,CNSMT-3000D inline aoi

Equipment type: M size online automatic 2D AOI
Applicable substrate: 50mm x 70mm-330mm x 250mm
Substrate thickness: 0.6mm-6.0mm
Resolution: 12 um (5um-17.5um option)
Dimensions: W860 x D900 x H1760 (mm)
Weight: 512KG

The full name of AOI (Automated Optical Inspection) is automatic optical inspection, which is based on optical principles to detect common defects encountered in welding production.

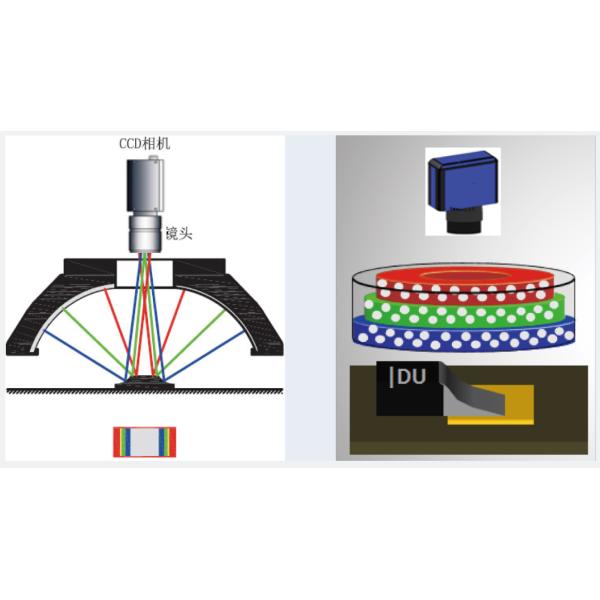

AOI is a new type of testing technology emerging, but it is developing rapidly, and many manufacturers have introduced AOI testing equipment. During automatic detection, the machine automatically scans the PCB through the camera, collects images, compares the tested solder joints with the qualified parameters in the database, after image processing, checks out the defects on the PCB, and displays/marks the defects through the display or automatic signs Come out and be repaired by maintenance personnel.
Use high-speed and high-precision visual processing technology to automatically detect various mounting errors and soldering defects on PCB boards.

PCB boards can range from fine-pitch high-density boards to low-density large-size boards, and can provide online inspection solutions to improve production efficiency and welding quality.

By using AOI as a tool to reduce defects, errors can be found and eliminated early in the assembly process to achieve good process control. Early detection of defects will avoid sending bad boards to the subsequent assembly stage.

AOI will reduce repair costs and avoid scrapping unrepairable circuit boards.
